Description

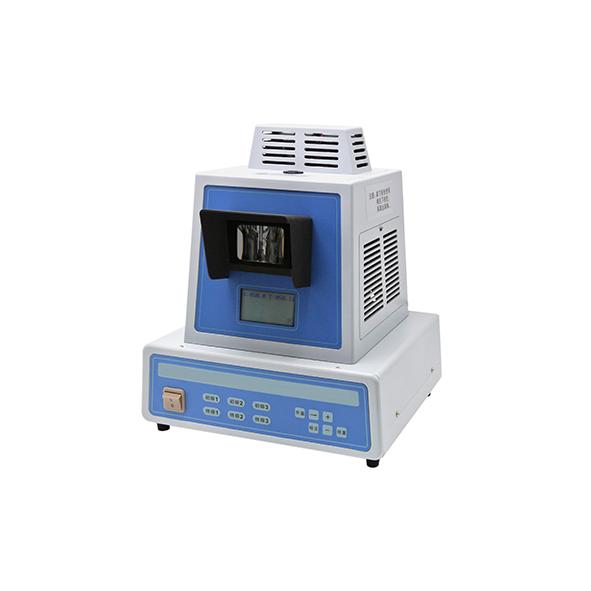

DYR/DYR-Y
Characteristics
1=>To be used to measure the melting point of medicines, dye-stuffs and perfumes and other organic crystal substances to determine their purity.
2=>Visually detect the initial and final melting points of the sample.
3=>Measuring three samples at the same time and calculate the average value automatically.
4=>Use silicone oil or water as heating-conducting medium.
Specifications
|
Parameters/Model DYR DYR-Y |
||
|
Measuring range |
Silicon oil : 40°C-280°C |
Water:40°C-90°C Silicon oil:60°C-280°C |
|
Heating-conducting medium |
Silicon oil |
Water / Silicon oil |
|
Measuring Mode |
Visual (8x magnification window) |
|
|
Resolution |
0.1 °C |
|
|
Linear heating-up rate |
0.5°C/min, 1.0°C/min, 1.5°C/min, 3.0 °C/min |
|
|
Accuracy |
≤200 °C:±0.4°C;>200 °C:±0.7°C |
|
|
Repeatability |
0.3°C (heating rate: 1.0°C/min) |
|
|
Linear heating rate error |
±10% |
|
|
Capillary dimensions |
Outer diameter: φ1.4mm Inner diameter: φ1.0mm Length: 120mm |
|
|
Number of capillary |
3 |
|
|
Height of sample |
3mm |
|
|
Interface |
RS232，USB |
|
|
Display |
LCD |
|
|
Power supply |
220V±22V，50Hz±1Hz，200w |
220V±22V，50Hz±1Hz，100w |
|
Overall Dimensions |
390mm ×390mm ×520mm |
|
|
Weight (Gross) |
13kg |
|
