Description

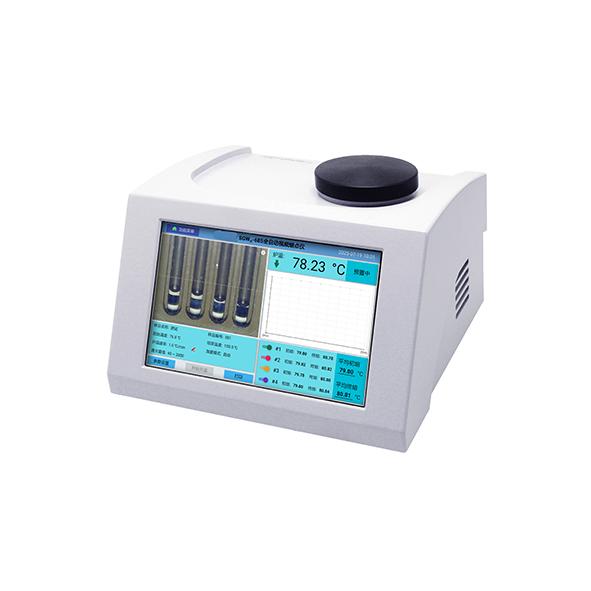

DYS-685/DYS-682/DYS-681
Characteristics
1=>Android system with 10.1 inch touch screen, provides melting videos playback.
2=>720P HD camera for clear observation.
3=>Use PID & PWM to control temperature.
4=>The light source brightness and detection sensitivity can be adjusted to better measure dark color samples.
5=> The instrument can measure 4 capillaries as the same time.
6=> Audit tracking function is optional, which meets the relevant requirements of the National Pharmacopoeia, GMP, GLP, and FDA/21CFR Part 11, and has user management permissions.
Specifications
|
Parameters/Model DYS-685 DYS-682 DYS-681 |
|||
|
Measuring range |
Room temperature – 400°C |
Room temperature – 360°C |
|
|
Measuring mode |
Auto / Visual (HD camera, video capture, playback monitoring) |
||
|
Measuring methods |
200 |
150 |
100 |
|
Number of Users |
200 |
150 |
/ |
|
Audit trail |
Optional |
Optional |
/ |
|
Electronic Signature |
Yes |
Yes |
/ |
|
Resolution |
0.01°C |
||
|
Linear heating-up rate |
0.1°C/min~20°C/min |
||
|
Accuracy |
≤200°C ±0.3°C ; >200°C ±0.5°C |
≤200°C ±0.4°C ; >200°C ±0.7°C |
|
|
Repeatability |
0.3°C (heating rate: 1.0°C/min) |
||
|
Linear heating rate error |
±10% |
||
|
Number of capillary |
4 |
||
|
Capillary dimensions |
Outer diameter: φ1.4mm Inner diameter: φ1.0mm Length: 90mm |
||
|
Height of sample |
3mm |
||
|
Operation System |
Android |
||
|
Data storage |
128G |
64G |
|
|
Display |
10.1 inch touch screen |
||
|
Graph storage |
40000 sets |
20000 sets |
10000 sets |
|
Interface |
1 x RS232，3 x USB，1 x RJ-45，WIFI |
1 x RS232，3 x USB |
|
|
Power supply |
100~240 V，50/60 Hz，150 w |
||
|
Overall Dimension |
495mm×493mm×350 mm |
||
|
Weight(Gross) |
5kg |
||
