Description

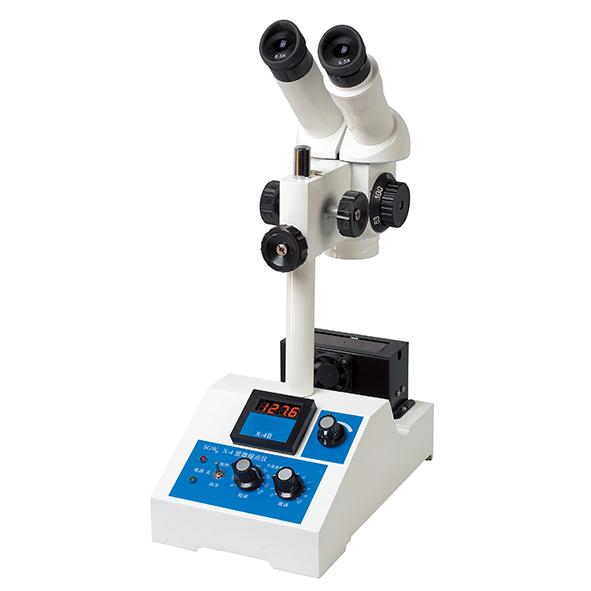

DYX-4B / DYX-4A / DYX-4
Characteristics
1=>To be used in pharmaceutical industry, chemical industry, textile industry, dyestuff.
2=>Use capillary or hot table (slide and cover glass) for sample loading.
3=>Observe with microscope.
4=>DYX-4B and DYX-4A are equipped with windscreen to reduce the impact of the environment on test results.
Specifications
|
Parameters/Model DYX-4B DYX-4A DYX-4 |
|||
|
Measuring range |
Room temperature – 320°C |
||
|
Measuring mode |
Visual |
||
|
Sample loading |
Capillary / Hot table |
||
|
Repeatability |
≤ 200°C: ±1°C;> 200°C: ±2°C |
||
|
Resolution |
0.1°C |
0.1°C |
1°C |
|
Observation mode |
Binocular Stereoscopic microscope |
Monocular microscope |
|
|
Optic magnification |
40 X -100 X Continuous zoom |
10 X (Eye lens) |
|
|
Power supply |
220V±22V，50Hz±1Hz，80w |
||
|
Overall Dimensions |
300mm ×220mm×440mm |
||
|
Weight (Gross) |
4 kg |
3.5 kg |
|
