Description

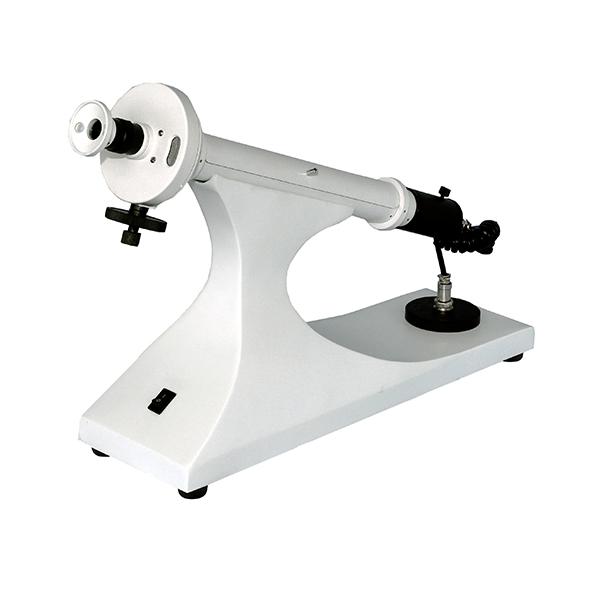

DYW-4L
Characteristics
1=> Visual aim
2=>Manual measure
3=>Easy to operate
Specifications
|
Parameters/Model DYW-4 DYW-4L |
||
|
Measuring range |
±180° |
|
|
Light source |
Sodium Lamp |
LED + interference filter |
|
Wavelength |
589nm |
|
|
Division Value |
1° |
|
|
Dial Venire Value in Reading |
0.05° |
|
|
Magnifying Factor of the magnifier |
4X |
|
|
Test Tube |
100mm / 200mm (regular) |
|
|
Power supply |
220V±22V , 50Hz±1Hz，20w |
220V±22V , 50Hz±1Hz，1w |
|
Overall dimensions |
600mm×220mm×400mm |
|
|
Weight (Gross) |
7kg |
4.5kg |
