Description

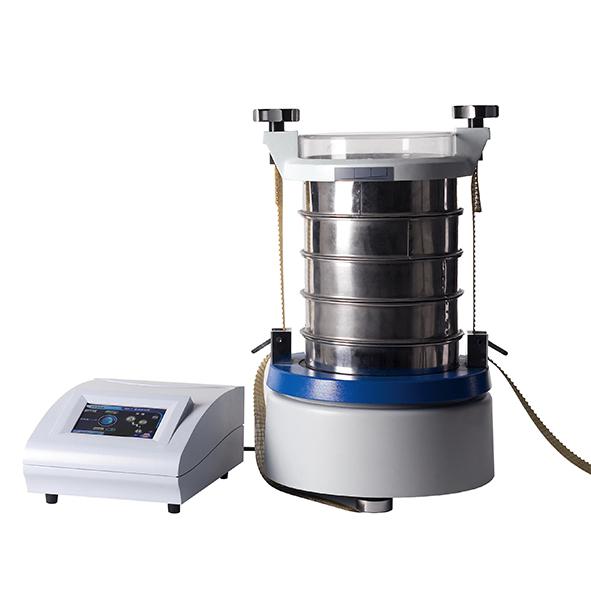

DYS-S
Characteristics
1=>Widely used in pharmaceutical, metallurgy, food, cosmetics and other industries to perform particle analysis.
2=>It has following features, such as, simple operation, no moving parts, and electronic control of amplitude and frequency.
3=>The level of performance is equivalent to the vibrator manufactured by German FRITSCH.
4=>Compared with the traditional manual vibrator, it can greatly reduce the work intensity and improve efficiency.
Specifications
|
Parameters/ Model DYS-S |
|
|
Measuring range |
≤325mesh |
|
Vibration frequency |
3000 times/min, 6000 times/ min |
|
Amplitude selection |
0 – 3mm continuous adjustment |
|
Vibraton modes |
1.Subtle Vibration 5.Three modes can be memorized even when the equipment is shut off |
|
Power supply |
AC 220V±22V, 50Hz±1Hz, 150w |
|
Dimensions |
Shaking unit: Φ300×210mm Control unit: 280mm×200mm×140mm |
|
Weight(Gross) |
25kg |
