Description

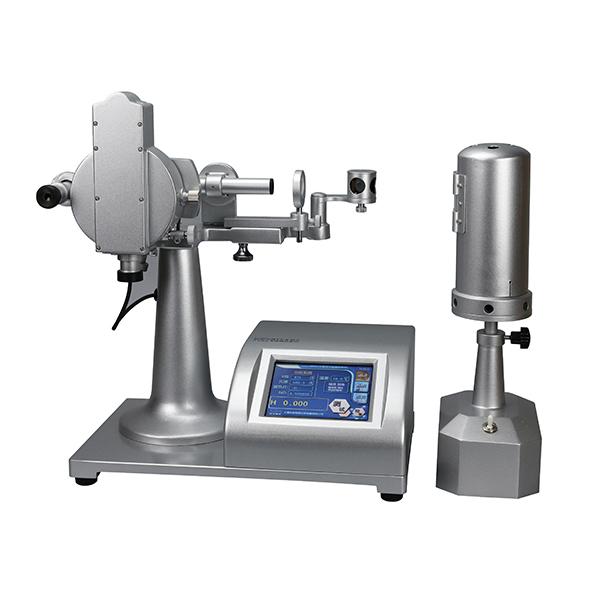

DYV-S
Characteristics
1=>Wide range, high-precision and multi-wavelength.
2=>Available for refractive index changes after high-temperature heat treatment of materials.
3=>Fast and accurately measure the refractive index, average dispersive partial dispersion and sugar solution mass fraction (Brix) for transparent or translucent solid or liquid substances.
4=>User-friendly interface, fast measuring speed, good repeatability, temperature correction.
5=>Four optional light sources.
Specifications
|
Parameters/Model DYV-S |
|
|
Measuring range |
Refractive index (nD): 1.300000–1.700000(liquid) 1.300000–1.950000(solid) |
|
Brix: 0-100% |
|
|
Accuracy |
Refractive index (nD): ±5 x 10-5 Brix: ±0.1% |
|
Resolution |
Refractive index (nD): 1 x 10-6 Brix: 0.01% |
|
Wavelengths |
706.5nm，656.3nm，589.3nm，587.6nm 546.1nm，486.1nm，435.8nm，404.7nm |
|
Light Source (optional) |
Hydrogen lamp/Sodium lamp/Helium lamp/Mercury lamp |
|
Temp. display range |
0-50°C |
|
Magnifying Factor of the magnifier |
5X |
|
Display |
5.6 inch color touch screen |
|
Interface |
RS232，USB，U disk |
|
Power supply |
220V±22V，50Hz±1Hz，120w |
|
Overall dimensions |
720mm×550mm×560mm |
|
Weight(Gross) |
80kg |
