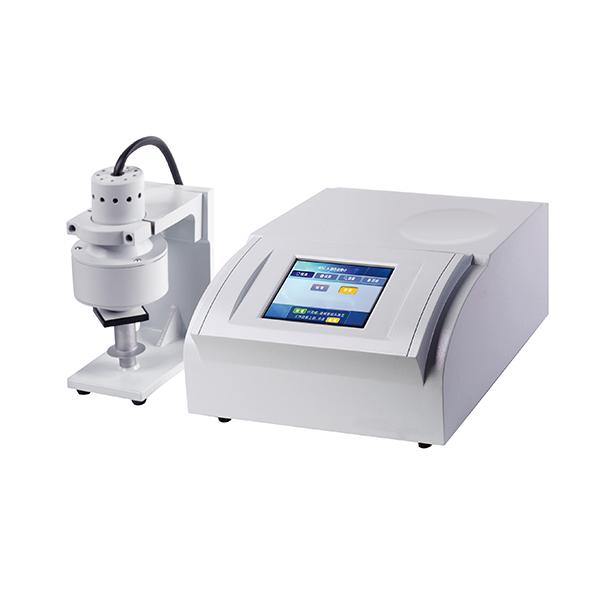

Colorimeter

Description

DYC-2S

Characteristics

1=>The colorimeter is a widely congested and easily operated colorimeter, which is suitable for measuring the reflected color of various objects, and can test the whiteness, chromaticity and color difference between two objects.

2=>Color touch screen with printing output, upper computer output, U disk output, data storage, data check function.

3=>This series of instruments can be widely used in textile, dye, printing and dyeing, paper making,building materials, enamel, food, printing etc.

Specifications

Parameters/Model DYC-2S
Illuminant	0/d
Spectrum conditions	The overall response is equivalent to tri-stimulus values X, Y, and Z calculated in corre- sponding functions under CIE standard illuminant D65 and 10°view of field.
Color representations	Color: X, Y, Z; Y, x, y; L, a, b; L, a, b; L, U, v; L, C, h Color difference:Δ E (Lab); ΔE (L a b); ΔE (LuV); ΔL, ΔC, ΔH* White: (a) Ganz whiteness: Binary linear whiteness recommended by CIE. (b) Blue-light whiteness: W=B (c) Tabble whiteness: It is recommended by ASTM (American Society for Testing and Mate rials); W=4B-3G (d) Hunter whiteness: (GB/T 5950-1996) Wh=100-[(100-L)2+a2+b2]0.5 Yellow index: Yi=100(1.3013X-1.1498Z) (ASTM E 313)
Repeatability	s (Y) ≤0.3;s (x)，s (y) ≤0.001;ΔE(Lab*)≤0.2
Stability	Δh(Y)≤0.2
Display	7 inch color touch LCD
Interface	USB，U disk
Data storage	1000 sets
Power supply	220V ±22V，50Hz± 1Hz，30w
Overall dimensions	500mm×440mm×420mm
Weight (Gross)	9.5kg
