Description

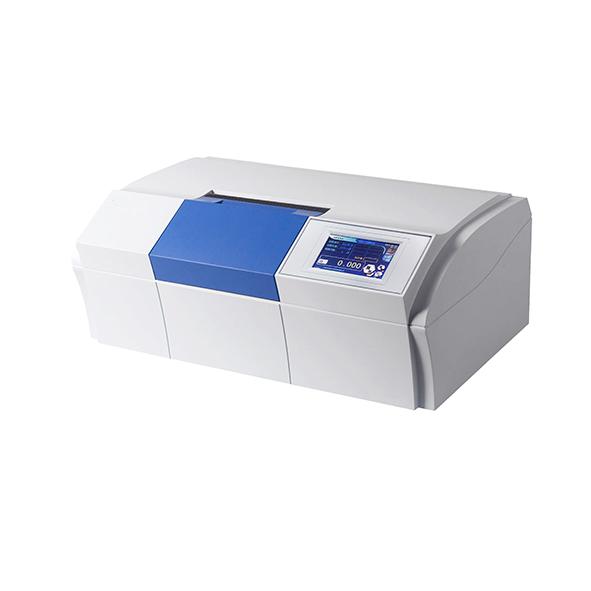

DYZZ-3
Characteristics
1=>Adopting the principle of photoelectric automatic balance measurement.
2=>High sensitivity, stable and reliable readings, and no human error.
3=>Automatically retest 6 times and calculate the average and root mean square, can measure dark samples.
4=>Color touch screen.
Specifications
|
Parameters/Model DYZZ-3 |
|
|
Measuring modes |
Optical Rotation, Specific Rotation, Concentration, International Sugar Scale |
|
Light source |
LED + interference filter |
|
Wavelength |
589nm |
|
Measuring range |
±45°(OR), 120°Z(ISS) |
|
Resolution |
0.001°(OR), 0.001°Z(ISS) |
|
Accuracy |
±(0.01+measuring value ×0.05%)°(OR) |
|
Repeatability |
≤0.003°(OR) |
|
Min. transmission |
10% |
|
Display |
Color Touch LCD |
|
Test tubes |
100mm 200mm (regular) |
|
Interface |
USB，RS232 |
|
Power supply |
220V±22V，50Hz±1Hz，150w |
|
Overall dimensions |
730mm×480mm×470mm |
|
Weight (Gross) |
36kg |
