Description

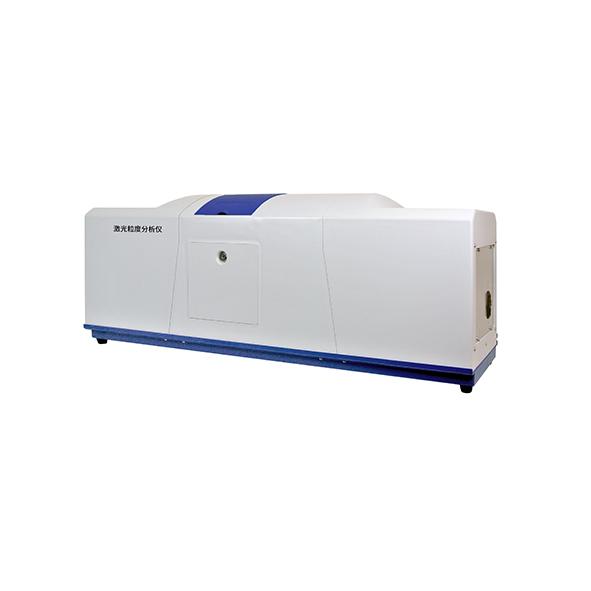

DYL-632 / DYL-636 / DYL-638
Characteristics
1=>The internal structure adopts a modular design, which is convenient for disassembly, maintenance, and upkeep.
2=>The optical system has an automatic calibration function.
3=>The temperature control system adopts dual silent fans, which have good cooling effect and ensure stable temperature.
4=>Multiple functions such as automatic water addition, automatic dispersion, automatic focusing, automatic circulation, automatic testing, automatic cleaning, and automatic result saving.
5=>Meet ISO-13320, designed with user grading management, electronic signature, password management, network transmission, data protection, and traceability functions.
Specifications
|
Parameters/Model DYL-632 DYL-636 DYL-638 |
|||
|
Dispersion method |
Wet |
||
|
Measuring Range |
0.01-800μm |
0.05-1200μm |
0.02-2000μm |
|
Work Principle |
Mie scattering theory |
||
|
Wavelength |
0.6328μm |
||
|
Light source |
He Ne gas laser, with lifespan>25000 hours |
||
|
Detection angle |
≥ 135 ° (front back and lateral fan-shaped distribution) |
||
|
Measuring method |
Wet dispersion, automatic centering, automatic water filling one-click fully automatic operation |
||
|
Optical path System |
Coated single lens |
||
|
Repetitiveness deviation |
±0.5%(national standard materials D50) |
||
|
Accuracy deviation |
±0.5%(national standard materials D50) |
||
|
Operation System |
Computer reverse control |
||
|
Interface |
Ethernet / USB / RS232 / RS485 |
||
|
Power supply |
AC 220V±10%， 50Hz，100W |
||
|
Dimensions |
1000×330×320mm |
||
|
Weight (Net) |
38Kg |
||
