Description

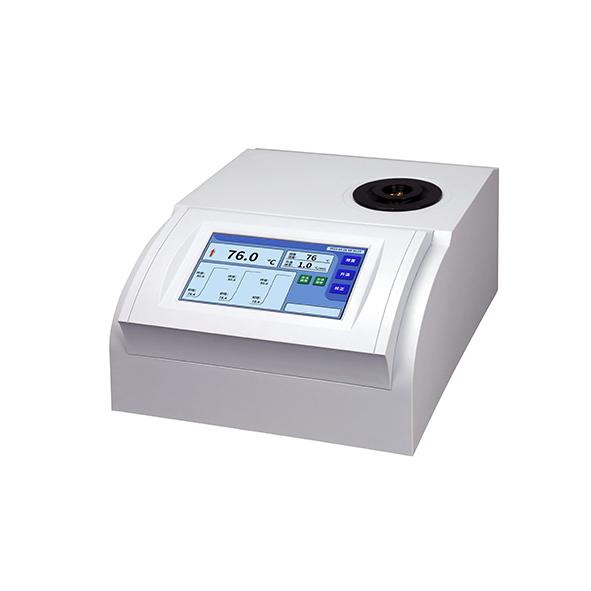

DYW-2C / DYW-2A / DYW-1C / DYW-1B / DYW-2
Characteristics
1=>To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
2=>Use PID & PWM to control the temperature.
3=>Automatically records the melting curve.
4=>Calculate average value of initial and final melting points automatically.
5=>Equipped with clock function.
6=>Can connect to a computer for data transferring.
7=>Touch Screen.
Specifications
|
Parameters/Model DYW-2C DYW-2A DYW-1C DYW-1B DYW-2 |
|||||
|
Measuring range |
RT ~ 360 °C |
RT ~ 300 °C |
RT ~ 400 °C |
RT ~ 320 °C |
RT ~ 300 °C |
|
Measuring mode |
Auto |
||||
|
Measuring methods |
8 |
||||
|
Resolution |
0.1 °C |
||||
|
Linear heating-up rate |
0.1 °C /min ~20 °C /min |
||||
|
Accuracy |
≤200 °C: ±0.4°C ;>200 °C: ±0.7°C |
||||
|
Repeatability |
0.3 °C(heating rate: 1.0°C/min) |
||||
|
Linear heating rate error |
±10% |
||||
|
Number of capillary |
3 |
1 |
|||
|
Capillary dimensions |
Outer diameter: φ1.4mm Inner diameter: φ1.0mm Length: 90mm |
||||
|
Height of sample |
3mm |
||||
|
Data storage |
1000 set |
/ |
1000 set |
/ |
/ |
|
Display |
7 inch touch LCD |
||||
|
Printer(Thermal) |
Standard accessory |
/ |
Optional accessory |
Optional accessory |
/ |
|
Interface |
RS232，USB |
||||
|
Power supply |
100~240VAC，50/60Hz，100W |
||||
|
Package Dimension |
580mm×445mm×320mm |
500mm×445mm×330mm |
|||
|
Weight(Gross) |
13kg |
11kg |
|||
