Description

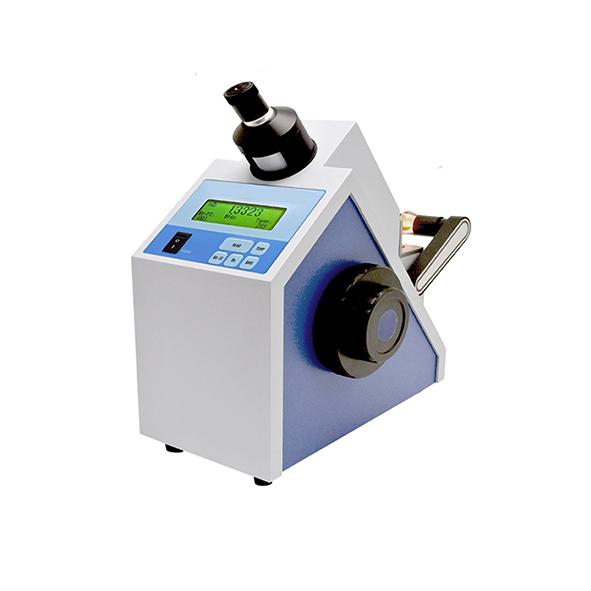

DYA-2S
Characteristics
1=>Measurement of refractive index nD of transparent or translucent liquid and solid substances.
2=>Measurement of the Brix of sugar solution.
3=>Automatic correction of the effect of temperature on the Brix.
4=>Prism made of hard glass.
5=>It works with 589nm wavelength and uses LED as light source.(DYA-3S)
Specifications
|
Parameters/Model DYA-3S DYA-2S |
||
|
Measuring range |
Refractive index (nD): 1.30000-1.72000 Brix: 0-100% |
Refractive index (nD): 1.3000-1.7000 Brix: 0-100% |
|
Measuring Accuracy |
Refractive index (nD): ±0.0002 Brix: ±0.1% |
Refractive index (nD): ±0.0002 Brix: ±0.1% |
|
Resolution |
Refractive index (nD): 0.00001 Brix: 0.01% |
Refractive index (nD): 0.0001 Brix: 0.1% |
|
Measuring methods |
8 types |
/ |
|
Temp. display range (Min. 0.1°C) |
-20-120°C |
0-50°C |
|
Display |
Color touch screen |
LCD |
|
Interface |
RS232，USB |
RS232 |
|
Date Storage |
500 sets |
/ |
|
Power supply |
220V±22V，50Hz±1Hz，30w |
|
|
Overall dimensions |
370mm×240mm×470mm |
|
|
Weight (Gross) |
10 kg |
|
